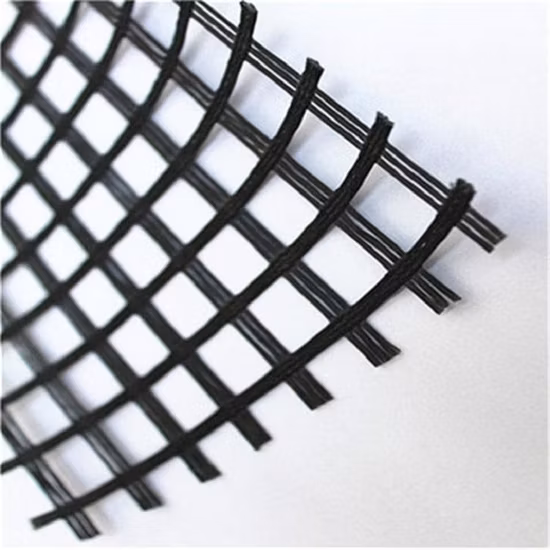

Polyester (PET) Geogrid Composite Nonwoven Bitumen Coated for Asphalt Overlayer Reinforcement

Basic Info.

Model NO.	PET-50/50C
Nonwoven	40g
Unit Weight	280g Approx.
Tensile Strength	>50kn/M
Mesh Size	40 X 40 mm
Width	5.0 M
Coating	Polymeric Bitumen
Transport Package	in Roll
Specification	PET-50/50C
Trademark	ECL
Origin	China
HS Code	5603
Production Capacity	5000000m2/Year

Product Description

Introduction: ECL PET GeoComposite coated bitumen is an asphalt reinforcement composite which combines a high modulus polyester geogrid with a lightweight non-woven. This composite is coated with bitumen to strengthen the bond with the asphalt layers. This PET Geocomposite provides the best solution to reflective cracking in asphalt overlays. ECL PET Geocomposite reduces maintenance costs and extends the service life of the overlay. Applications: - Surface course reinforcement - Crack prevention and road repair - Asphalt or Concrete resurfacing - Airport Construction Features: - Flexible, high-strength,- Good resistance to shear force while installing damages- Temperature-resistant asphalt- Reinforcing grid with a bituminous coating
Technical Specification:

Item Properties	Unit	PET-30/30C	PET-50/50C	PET-75/75C	PET-100/100C
Materials	/	Polyester Filament + Nonwoven
Nonwoven	/	40g Ultra Light nonwoven
Coating	/	Polymeric Modified Bitumen
Mesh size of Grid	mm	25.4 x 25.4 or 40 x 40
Ultimate Tensile Strength MD x CMD	KN/M	30 x 30	50 x 50	75 x 75	100 x 100
Elongation at Ultimate	%	12	12	12	12
Tensile Strength at 5% Strain MD x CMD	KN/M	14	24	35	46
Roll Width	M	5.0 Max.
Roll Length	M	50 - 100
