Composite Geogrid Fiberglass Geogrid Self

Basic Info.

Material	Polyethylene/Polyester/Fibergllass/Plastic
Type	Composite Geotextile
Types	Sewed or Glued Available
Roll Length	50-100m
Popular Roll Width	3.9m, 5.8m
Mesh Size	12.7*12.7, 25.4*25.4, or as Request.
Elongation	<13%
Transport Package	Inner Pipe + Outside Bag or Film
Specification	1-6m width
Origin	China
HS Code	5603941000
Production Capacity	10000m2 Per Day

Product Description

Introduction:

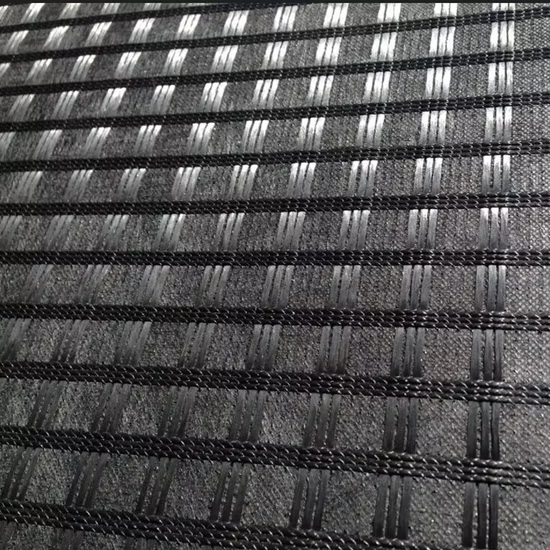

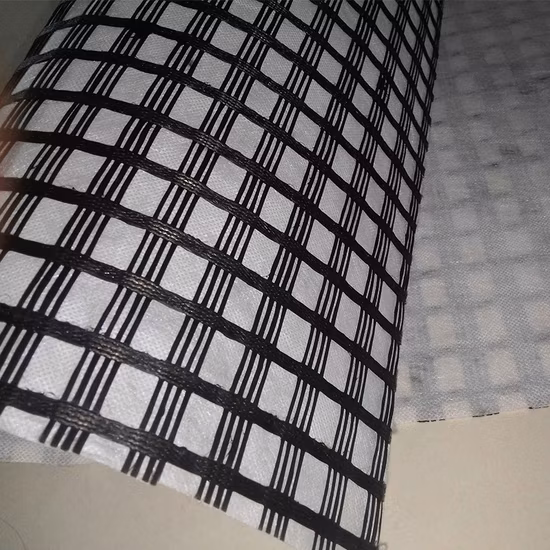

Geogrid composite is a composite of fiberglass geogrid, polyester geogrid and plastic geogrid combined with non-woven geotextile or fabric through adhesive and hot melting methods. The non woven geotextile surface is rough and not easy to slide during the construction. It enables the reinforced geogrid composite stay smooth in the process of paving. It is a kind of innovative composite geosynthetic materials, which organic combining the excellent performance of geogrid and geotextile. This product can be designed according to actual requirement.Besides, we can also sew the geogrid and geotextile together which is more stable structure under outside force.
We have ISO/CE certificates for this product!

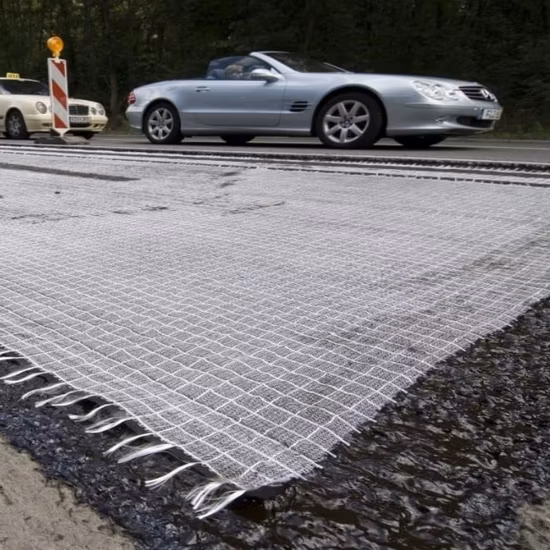

Application:Normally, Geogrid Composite with Geotextile is widely used at home and abroad because it is cheaper compared with other kind geocomposite.1. Used in surface reinforcement of highway, railway and airport road;2. Used for the maintaining, re-construction and broaden of the old road surface3. Used for reinforcement of irrigation channels and river dams.4. Used to strengthen bridge connecting surface.

Composites: Geogrid with Geotextile: (ISO/CE Certificates)
Type	Model	Breaking Strength (KN/M)≥	Breaking Elongation (%) ≤	Mesh Size (mm*mm)	Width (m)
Fiberglass Geogrid Composite with Geotextile	BF30/120	30*30	3	12.7 - 50	1 - 6
	BF50/120	50*50
	BF80/120	80*80
	BF100/120	100*100
	BF120/120	120*120
	BF150/120	150*150
	BF200/120	200*200
	BF300/120	300*300
Polyester Geogrid Composite with Geotextile	PF30/150	30*30	13	12.7 - 50	1 - 6
	PF50/150	50*50
	PF80/150	80*80
PP Biaxial Geogrid Composite with Geotextile	PC30/150	30*30	13	12.7 - 50	1 - 6
	PC50/150	50*50
	PC80/150	80*80

Composites: Warp Knitted Composite with Geotextile: (ISO/CE Certificates)
Type	Model	Breaking Strength (KN/M)	Breaking Elongation (%)	Mesh Size (mm*mm)	Width (m)
Fiberglass Reinforced Geotextile	GR5050	50*50	4	5 -50	1 - 5.3
	GR8080	80*80
	GR100100	100*100
Polyester Fiber Reinforced Geotextile	PR50	50*14	13	5 -50	1 - 5.3
	PR100	100*14
	PR200	200*14
	PR400	400*50
	PR600	600*50
	PR5050	50*50
	PR100100	100*100
	PR200200	200*200

FAQ:
Q: Are you factory or trading company?
A: We are factory direct sale.
Q: Which country did you export?
A: Our products have been exported to many countries all over the world, including USA, Panama, Colombia, Chile, Peru, Ecuador, Russia, UK, Italy, France, Germany, Poland, Hungary, Turkey, Romania, Israel, India, Philippines, Singapore, Vietnam, Thailand, Indonesia, Australia, New Zealand...
Q: May I have your samples for testing?
A: Yes. We are glad to provide free samples within 5 days. Usually we provide A4 size free sample. New Client needs to pay the air delivery cost.
Q: What is your MOQ?
A: Normally, MOQ is one 20'GP container. But we also accept LCL for trial order.
Q: What's the payment term?
A: Usually T/T, L/C.
